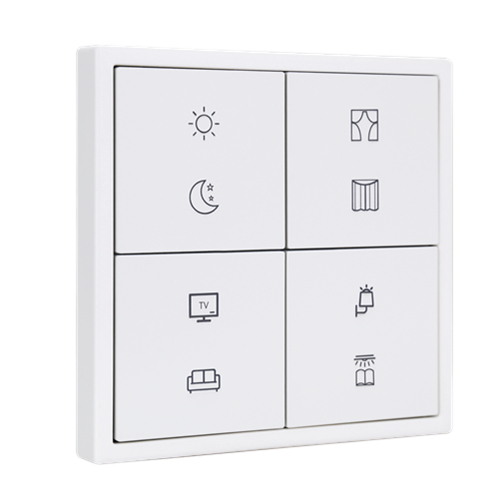

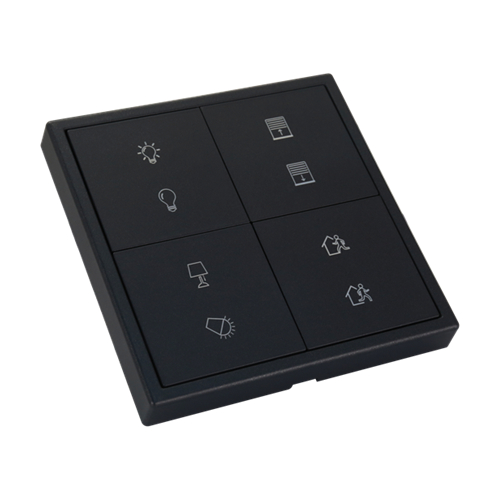

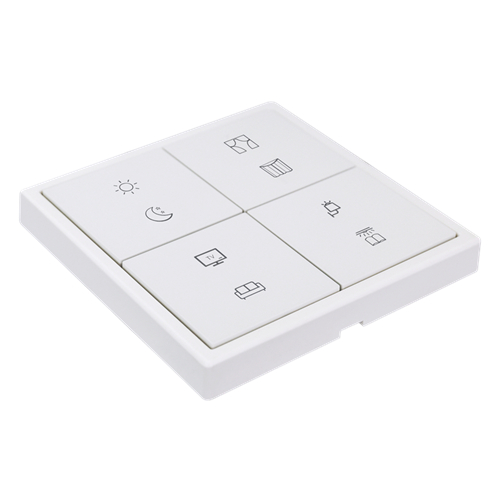

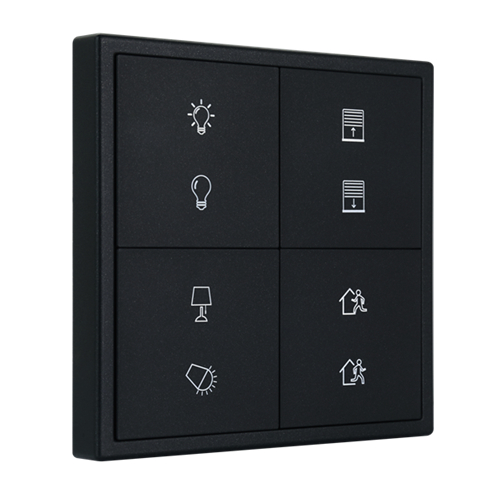

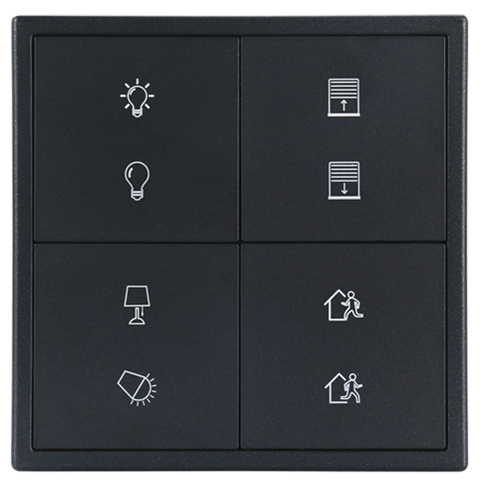

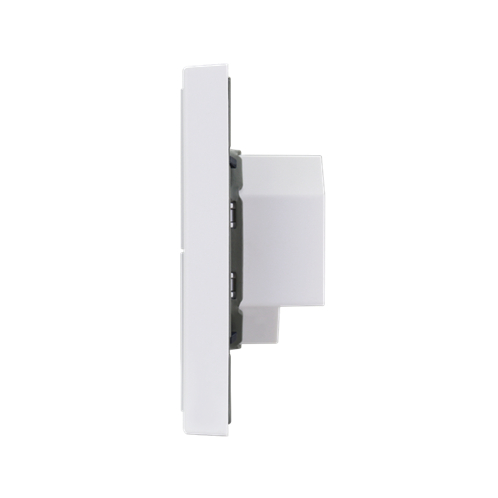

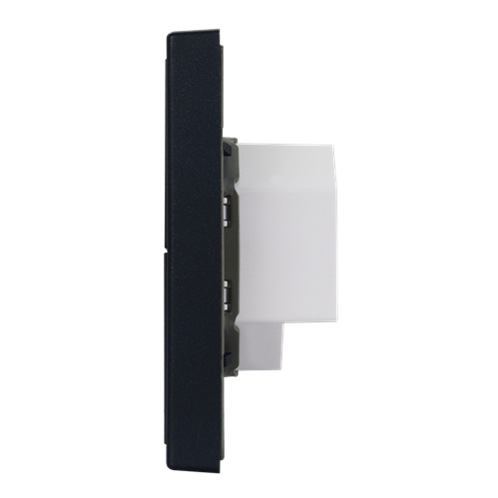

KNX Tile Series 4 Buttons Panel B

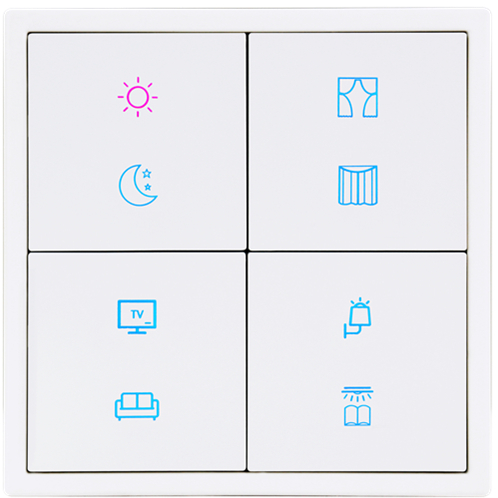

KNX Tile series Button Panel 2.0 (See Figure 1-6) contains 1/2/4-button panels, both plastic and metal versions. Icons and text of each button supports laser labelling. With built-in RGB backlight for each pushbutton, the color and brightness level can be set by ETS or manually set on the panel. The panels support controls of lighting, curtains, scenes, music, etc. ■ Built-in temperature sensor ■ Built-in proximity sensor (maximum sensing distance: 20~30cm) The 1 Button Panel A/B in metal version (M/PT1RA.1, M/PT1RB.1) do not support proximity sensing function. ■ 1/2/4-button panels with built-in backlight ■ The color and brightness level of each button can be set. ■ Button modes: single mode and combined mode ■ Control modes: Switching control, Dimming control, Shutter control, Flexible control, Scene control, Sequence control, Percentage control, Threshold control, String (14 bytes) control, Alternate control, Pulse control, RGB control, Fan control, Combination control. ■ Supports online upgrade.
