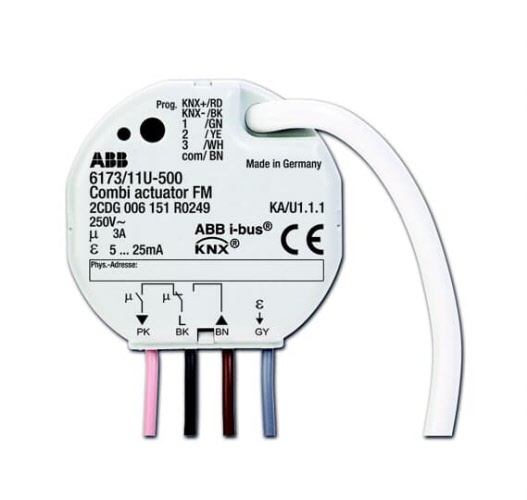

6173/11 U-500 Combi actuator FM
ABB
Only
    Delivery time:5-7 Days
Add to cart
  • Description
  • More

For controlling blind or awning motors. For connecting the thermoelectric actuating drives 6164/10 101. 1 electronic output (noiseless) The bus can be connected via enclosed terminal block.

6173/11 U-500 Combi actuator FM
6173/11 U-500 Combi actuator FM

Technical

  • Data Sheet, Technical Information:
    2CKA001373B7828
  • Current Type:
    AC
  • Rated Voltage (Ur):
    230 V
  • Auxiliary Voltage AC/DC:
    230 V AC/DC
  • Rated Current (In):
    3 A
  • Maximum Switching Current:
    Resistive Load 600 A
  • Rated Frequency (f):
    50 ... 60 Hz
  • Number of Outputs:
    2
  • Compatible Bus Systems:
    KNX (TP)
  • Product Range:
    KNX
  • Load Type:
    Operation mode Blind
  • Mounting Type:
    Flush Mounted
  • Number of Batteries:
    0

Environmental

  • Ambient Air Temperature:
    Operation -5 ... +45 °C
  • Degree of Protection:
    IP20
  • RoHS Status:
    Following EU Directive 2011/65/EU and Amendment 2015/863 July 22, 2019
  • RoHS Information:
    2CKA200000E4691
  • REACH Declaration:
    2CKA309999E9999

Dimensions

  • Product Net Weight:
    65 g

Ordering

  • Minimum Order Quantity:
    1 piece
  • Package Level 1 Units:
    carton 1 piece
  • Package Level 1 Gross Weight:
    0.114 kg
  • Customs Tariff Number:
    85389091
  • E-Number (Finland):
    2815277
  • E-Number (Sweden):
    1738116
  • Country of Origin:
    Germany (DE)

Certificates and Declarations

Classifications

  • ETIM 8:
    EC001330 - Shutting actuator for bus system
  • ETIM 9:
    EC001330 - Shutting actuator for bus system
  • WEEE Category:
    5. Small Equipment (No External Dimension More Than 50 cm)
  • WEEE B2C / B2B:
    Business To Consumer
  • CN8:
    8538 90 91
  • eClass:
    V11.0 : 27143128
