KNX BAOS Chip 83X

BAOS Modules from Weinzierl are a cost effective way to make devices KNX-capable. The modules serve as a serial interface to KNX. As an alternative to the modules, the KNX BAOS 83x chip provides another level of integration. The preprogrammed firmware is identical to the modules and includes a 83x certified KNX stack and the BAOS protocol and provides support for up to 1,000 data points. The chip can be integrated together with a KNX UART transceiver on your own PCB designs to develop KNX devices.

  KNX connectivity on a small footprint

Our KNX BAOS Chip is a micro-controller running the certified Weinzierl KNX Stack. Possible applications for the KNX BAOS chip are the integration into sensors, actuators, communication and even visualization devices. Communication with the chip takes place via the serial BAOS protocol in FT1.2 frame format. In addition, the FT1.2 protocol enables the transmission and reception of KNX telegrams in the cEMI (Common External Message Interface) format.

  Customer Benefits

• Low investments
• Optimal price-performance ratio
• Shorter development time
• For modular device concept
• Free demo software available

  Integrated Object Server

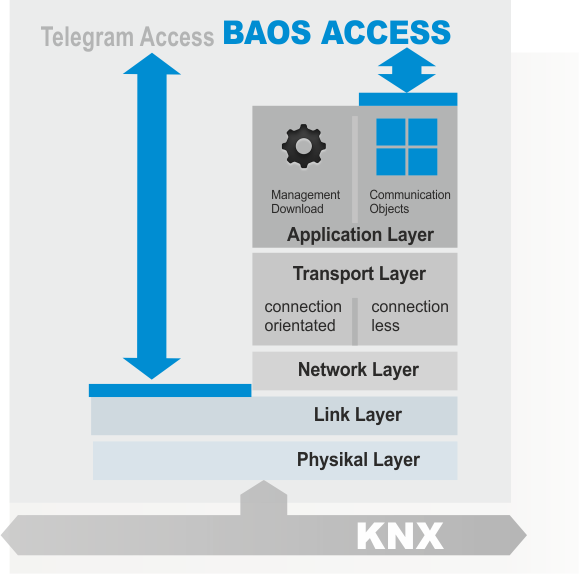

The benefit of the Object Server in the KNX BAOS Chip is the logical decoupling of the application from the KNX communication. The application can access the values of the communication objects without any knowledge of KNX telegram formats or KNX addresses used in the current installation. The chip offers up to 1000 data points.

The chip autonomously generates and sends group telegrams. Received group telegrams will be interpreted in the chip and the values will be stored in the addressed communication objects. The complete download of ETS is handled within the chip.

  Quick start into KNX device development

For a quick start into the development of KNX devices we recommend our KNX BAOS Starter Kit. It contains a development board and two KNX BAOS Modules. For the development board we provide a free demo project which implements the BAOS protocol and a simple application. A demo tool for Windows® is available to test the BAOS protocol from a PC.

A generic ETS (Engineering Tool Software) database is available for setting the data types and linking the communication objects. Of course, it is also possible to create individual databases for your devices. So the KNX BAOS Modules allow a fast development of full value KNX devices which of course can be certified by the KNX Association.

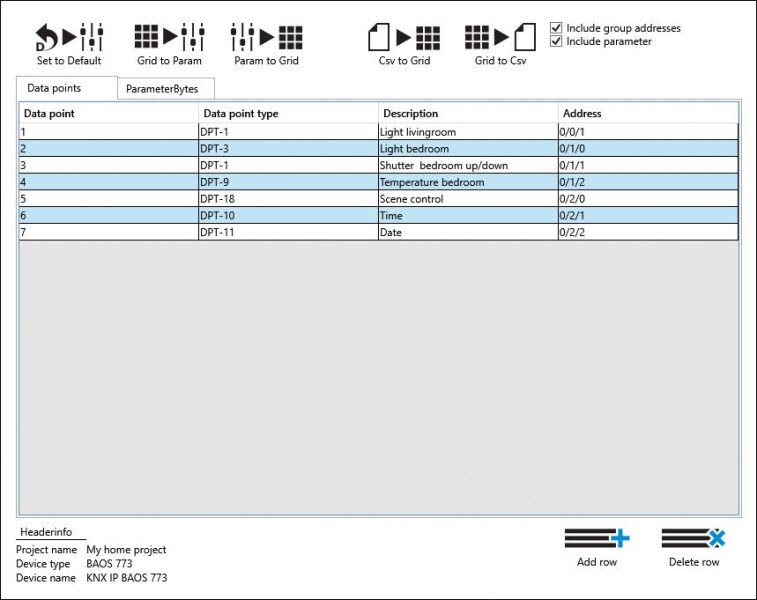

For all Weinzierl BAOS modules and devices, a generic ETS entry is available. It contains a list of all available data points. You can select a data point type and enter a name for each data point. In addition, a so-called DCA (Device Control App) is now available with the Weinzierl BAOS CSV Importer. The Weinzierl BAOS CSV Importer is available for all Weinzierl BAOS devices with a generic ETS product database and is an easy way to export the existing configuration of a generic BAOS database into a CSV file and import it into another project. Thus, a tedious configuration by hand is spared.

The Weinzierl BAOS CSV Importer is available as a free download in the online store of the KNX Association under Shop / ETS-Apps (Creating a user account is necessary). After adding to the shopping cart and check-out you will receive the download link for the Weinzierl BAOS CSV Importer within "My account / Products". You can also download the Weinzierl BAOS CSV Importer.

Installation instructions and usage documentation are also available

Please note: the Weinzierl BAOS CSV Importer requires a commercial license of ETS 5.5 or higher.

• Manufacturer: Atmel / Type: ATSAMD20E18A-MU
• Package: QFN32, 5x5 mm
• Power supply: 3.3 V (via KNX Transceiver)
• Serial frame format FT1.2 / KNX telegram format: common EMI (cEMI)
• BAOS Protocol V2 with up to 1000 data points


  Starter Kit

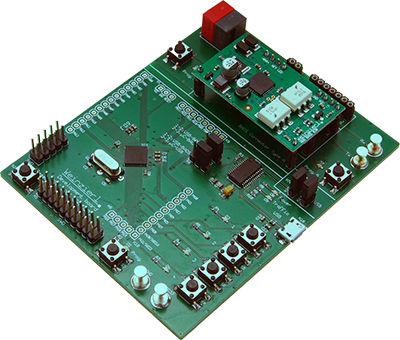

The new Weinzierl KNX BAOS Starter Kit allows a quick start into KNX development. The development board provides a socket for the BAOS Modules and contains a user programmable micro (Cortex M0+) for the application as well as some connectors, LEDs and buttons for development purpose.

The KNX BAOS Starter Kit contains:

• 1 development board
• 1 KNX BAOS 830 module
• 1 KNX BAOS 832 module
• 1 USB cable A/B (micro)
• Development software (Download)
