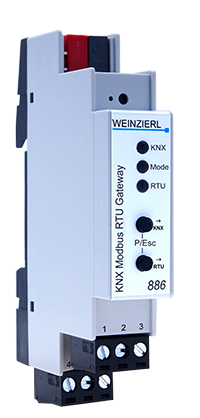

The KNX Modbus RTU Gateway 886 is a compact KNX/Modbus gateway with 250 freely configurable channels (KNX data points). The device allows easy integration of Modbus devices supporting the RTU protocol via RS-485 into KNX installations. It can be used as Modbus master or slave.

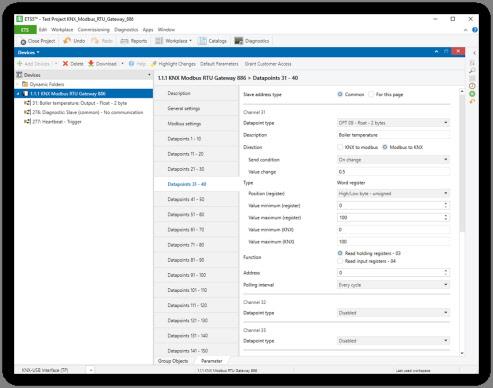

The assignment between KNX objects and Modbus registers is made via parameters in the ETS - no further tool is required. The configuration can also be exported and imported via a DCA (Device Configuration App, SW extension in the ETS).
The device enables the interpretation and scaling of the Modbus data according to the data point types of the KNX standard.
Two buttons and three multi-colored LEDs on the front panel allow local operation (test functions) and visualization of the device status. The Modbus connection is electrically isolated from the KNX bus. All connections are pluggable.
Weinzierl Modbus Gateway Config Tool

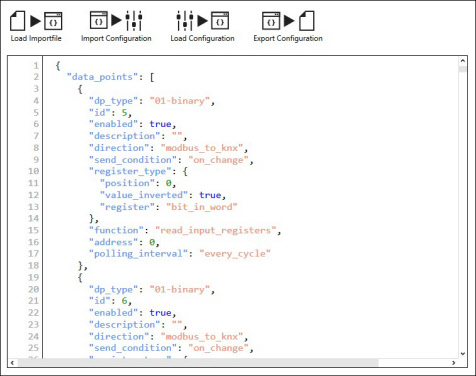

The Weinzierl Modbus Gateway Config Tool is a so-called DCA (Device Configuration AddIn) for the ETS. With this it is possible to export the configuration of a Weinzierl KNX Modbus RTU Gateway 886 database and import it into another gateway. The Weinzierl Modbus Gateway Config Tool is available online as a free download in the KNX Association online store under Shop / ETS Apps (creating a user account is necessary).
After adding it to the shopping cart and checking it out, the download link for the Weinzierl Modbus Gateway Config Tool will appear within a short time under "My account / Products". You can also download it here directly.
Installation instructions and usage documentation are available.
Please note: The Weinzierl Modbus Gateway Config Tool requires a commercial license of ETS 5.5 or higher.
Data sheet
Technical data
Mechanical data
Controls and indicators
Modbus
Power supply
Connectors
-
Connector for KNX Bus (red / black)
-
Pluggable screw connector (3 poles) for Modbus
-
Pluggable screw connector (3 poles) for power supply
