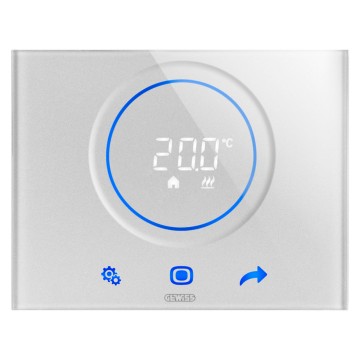

Wall-mounting thermostat to control heating/cooling and humidification/dehumidification systems on the BUS and manage the temperature in manual mode or on 3 levels (comfort, pre-comfort, economy). Control algorithms for 2- or 4-way systems: two points (ON/OFF or 0%/100%), proportional-integral (PWM or continuous), fan coil. Includes 1 input for external NTC temperature sensor (e.g.: protection for flood mounting heating). Equipped with a user interface with touch commands (capacitive) on technopolymer plate and backlit display. The thermostat has built-in proximity, temperature and humidity sensors. Hardware prepared for future implementations (OpenTherm protocol). To be configured with ETS software.
Can be combined with KNX flush-mounting timed thermostats or KNX control panels for local temperature adjustment: in this case, the thermostat acts as the slave by executing the temperature sent by the master.
Equipped with coupling terminal for connection to bus. Wall fixing with wall plugs or screw fixing on rectangular 3-gang boxes (centre distance 83.5 mm). Plate material: technopolymer.
