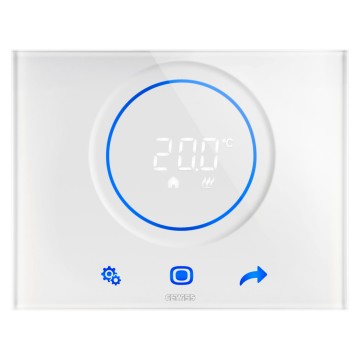

Flush-mounting thermostat to control heating/cooling systems on the BUS and manage the temperature in manual mode or on 3 levels (comfort, pre-comfort, economy). Control algorithms for 2- or 4-way systems: two points (ON/OFF or 0%/100%), proportional-integral (PWM or continuous), fan coil (with ON/OFF or proportional-integral valve control). Can be used to manage humidification/dehumidification systems if connected to an external humidity sensor (e.g. GW1x762H). Includes 1 input for a potential-free contact (for the window contact function, or for managing fronts, dimmers, roller shutters and scenes); 1 input for the external temperature NTC probe sensor (e.g. protection for floor-mounting heating) or, alternatively, as a second input for a potential-free contact. With user interface with touch commands (capacitive) on glass plate and backlit display. The thermostat has built-in proximity and temperature sensors. To be configured with ETS software or with Easy Controller.
Can be combined with KNX flush-mounting timed thermostats or KNX control panels for local temperature adjustment: In this case, the thermostat acts as the slave by executing the temperature profile sent by the master.
Equipped with coupling terminal for connection to BUS. The thermostats include a front plate, electronic unit and metal support, and are suitable for screw fixing on both rectangular 3-gang boxes (centre distance 83.5 mm) and round/square boxes (centre distance 60 mm) equipped with fixing columns. Plate material: glass.
