  • Description

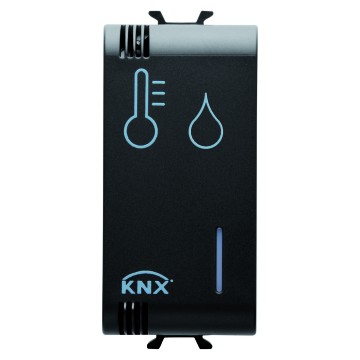

KNX humidity/temperature sensors

Flush-mounting temperature adjustment probe with humidity sensor for controlling heating/cooling systems and humidification/dehumidification systems on the BUS. 3-level temperature profile (comfort, pre-comfort, economy). Control algorithms for 2- or 4-way systems: two points (ON/OFF or 0%/100%), proportional-integral (PWM or continuous), fan coil (max. 3 speeds). Includes: 1 input for a potential-free contact (for the window contact function, or for managing fronts, dimmers, roller shutters and scenes); 1 input for the external temperature NTC probe sensor (e.g. protection for floor-mounting heating) or, alternatively, as a second input for a potential-free contact. Equipped with a front LED signalling the operating status and the load status (solenoid valve). To be configured with ETS software.
Can be combined with thermostats GW10795H, GW12795H, GW14795H or timed thermostats GW10794H, GW12794H, GW14794H to adjust the temperature in specific areas and for controlling and displaying the probe parameters (the probe does not have a display).
It is equipped with coupling terminal for connection to bus.
