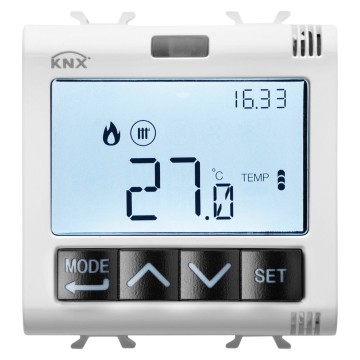

Flush-mounting thermostat with humidity management, to control heating/cooling and humidification/dehumidification systems on the BUS and to manually manage the temperature on three levels (comfort, pre-comfort, economy). Control algorithms for 2- or 4-way systems: two points (ON/OFF or 0%/100%), proportional-integral (PWM or continuous), fan coil (max. 3 speeds). Includes: 1 output for commanding the area solenoid valve (or as a generic output for executing ON/OFF commands, timed commands, priority commands or scene management); 1 input for the potential-free contact (for the window contact function, or for managing fronts, dimmers, roller shutters and scenes); 1 input for the external temperature NTC probe sensor (e.g. protection for floor-mounting heating) or, alternatively, as a second input for a potential-free contact. Equipped with an LCD display with customisable RGB backlighting. To be configured with ETS software.
Can be combined with KNX flush-mounting timed thermostats for local temperature adjustment: in this case, the thermostat acts as a Slave, executing the temperature profile sent from the Master (timed thermostat), using the locally defined setpoint values. If the system contains remote elements with their own control logic (e.g. flush-mounting KNX temperature adjustment probes), the thermostat can be used to visualise and set their operating parameters (max. 4 elements).
Equipped with coupling terminal for connection to BUS. The device does not have a built-in humidity sensor, so the relative humidity value must be obtained from an external KNX sensor (es: GW1x762H).
