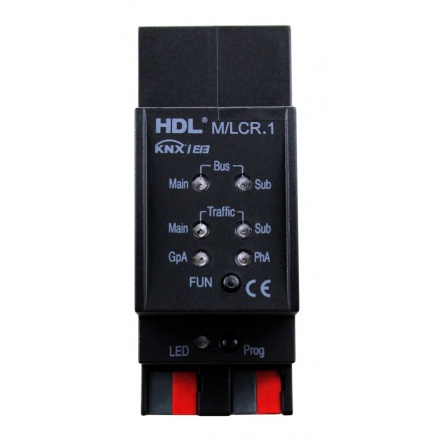

The HDL-KNX Line Couple is a module device which can be used as coupler or repeater (to amplify the signal). If the device is used as a line coupler, it can be linked with other line or backbone line. A separate power supply including a chock is required for each new line segment and each line will be electrically isolated. The Line Coupler can filter telegrams and permit pass or block them to other adjacent lines.
Bus Voltage : 21~30V DC
Bus Interface : KNX/EIB
Bus Current : ＜30mA
KNX Cable : 0.75 – 0.85mm Diameter Single Core
KNX Terminals : 0.75 – 0.85mm Diameter Single Core
Dimensions : 90mm×36mm×70mm
