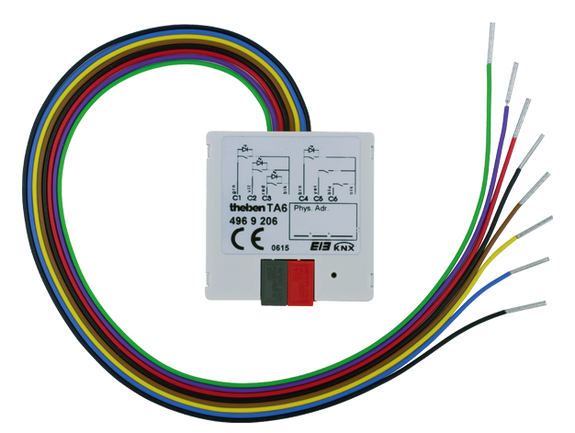

TA 6 KNX
Theben
Just
    Delivery time:5-7 Days
Add to cart
  • Description

TA 6 KNX

Description

  • Binary input/binary output sensor interfaces
  • 6-way key interface
  • 8-pole cable connection
  • Can be installed in flush-mounted sockets with conventional sensors/switches
  • Free allocation of functions: Switch/key, dimming, blinds, valuator
  • Inputs can be reconfigured to outputs: binary input: potential-free contact/binary output: 1 mA (low current) (LED 1 mA types)
  • Colour coding of wiring pairs
  • Grooves on side of housing for switch/sensor clamps

Technical data

Operating voltage KNX Bus voltage, ≤10 mA
Installation type in flush-mounted socket
Type of connection KNX bus terminal
Number of inputs 6
Max. cable length 5 m
Length connecting wires 25 cm
Ouput configuration LED Low current 1 mA (LED 1 mA types) without series resistor
Contact voltage 3,3 V
Contact current 0,5 mA
Interface extension max. 5 m
Reaction in case of bus recovery Adjustable
Ambient temperature -5 °C … +45 °C
Type of protection IP 20
Protection class III
