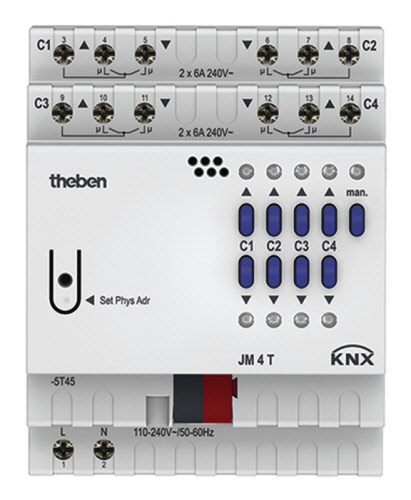

JM 4 T KNX



Technical data

Operating voltage KNX Bus voltage, ≤4 mA
Operating voltage 110 – 240 V AC
Stand-by consumption ~0,3 W
Frequency 50 – 60 Hz
Number of channels 4
Width 4 modules
Installation type DIN rail
Type of connection Terminal screws | Bus connection: KNX bus terminal
Max. cable cross section Solid wire: 0.5 mm² (Ø 0.8) to 4 mm² | Stranded wire with end sleeve: 0.5 mm² to 2.5 mm²
Type of contact NO contact, 6 A
Switching output Potential-free, for SELV, if the whole device switches SELV
Ambient temperature -5 °C … +45 °C
Type of protection IP 20
Protection class II according to EN 60 669

Description

  • 4-way blind actuator FIX1
  • For controlling drives for blinds, shutters, sun and vision protection devices, skylights and ventilation flaps
  • Manual operation on device (even without bus connection)
  • LED Up and Down switching status display for each channel
  • Potential-free contacts for Up and Down per channel
  • Copy function for fast configuration
