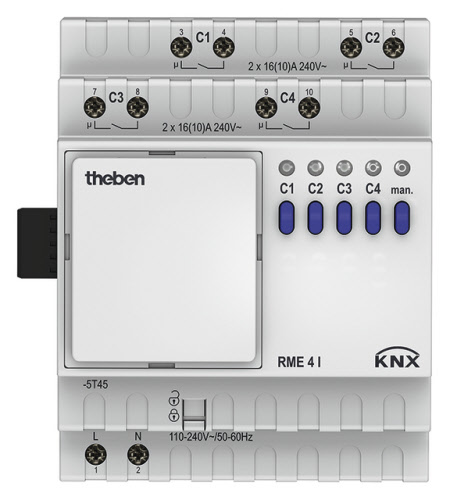

RME 4 I KNX

• Description

  • 4-way C load switching actuator MIX2
  • With current recognition
  • For higher lamp loads
  • Extension module MIX2
  • For upgrading to maximum of 12 channels
  • Up to two extension modules MIX or MIX2 can be connected to one base module
  • Device and KNX bus module can be swapped independently of each other
  • Removable KNX bus module enables devices to be changed without reprogramming
  • Manual set-up and use of switching actuators is possible without KNX bus module
  • LED switching status display for each channel
  • Manual operation on device (even without bus connection)
  • Adjustable characteristics: e.g. switching, delayed switching, pulse function
  • Links, type of contact (NC contact/NO contact) and participation in central commands such as continuous On, continuous Off, central switching and save/call up scene
  • Switching functions: On/Off, pulse, On/Off delay, staircase light with warning
  • Logical links: e.g. lock, AND, release, OR

• Technical data

  Operating voltage	110 – 240 V AC
  Frequency	50 – 60 Hz
  Stand-by consumption	~0 W
  Capacity loss max.	2,4 W
  Installation type	DIN rail
  Width	4 modules
  Type of connection	Screw terminals
  Max. cable cross section	Solid wire: 0.5 mm² (Ø 0.8) to 4 mm² | Stranded wire with end sleeve: 0.5 mm² to 2.5 mm²
  Number of channels	4
  Type of contact	NO contact, 16 A, 10 A
  Opening width	< 3 mm
  Resistive load	3680 W
  Capacitive load	200 µF
  Incandescent lamp load	2600 W
  Fluorescent lamp load (conventional) parallel-corrected	2000 W (200 µF)
  Fluorescent lamp load (electronic ballast)	1650 W
  Energy saving lamps	410 W
  LED lamp < 2 W	75 W
  LED lamp 2-8 W	250 W
  LED lamp > 8 W	300 W
  Inrush current	max. 1500 A / 200 µs
  Voltage output	240 V AC
  Switching output	Potential-free
  Switching of various phases	Possible
  Suitable for SELV	Yes if all channels switch at SELV
  Accuracy current measurement	I > 1 A: ± 8 % of measured value; I < 1 A: ± 100 mA; lowest measurable value: 150 mA
  Ambient temperature	-5 °C … +45 °C
  Type of protection	IP 20
  Protection class	II according to EN 60 669
