Description

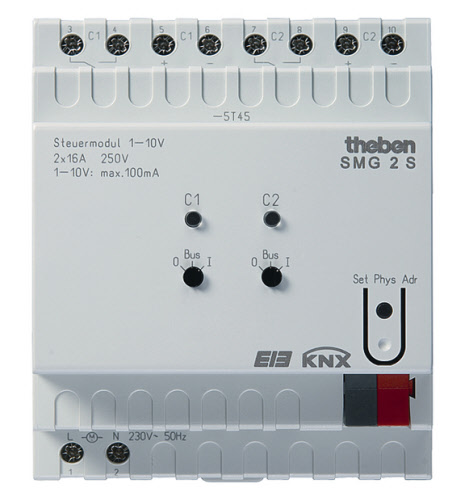

• 2-way 1-10 V control unit MIX
• Base module MIX
• Can be upgraded to maximum of 6 channels
• Free combination of switches, dimming, blinds and heating control as well as binary inputs
• Switching and dimming of lighting circuits in combination with electronic ballasts (EBs and ballasts LED)
• 1-10V inputs and one switch output (relay contact) per channel
• LED switching status display for each channel
• Manual switch with On/Off/Bus settings (also without bus voltage)
• With crossover switching to spare the relay contact

• Technical data

  Operating voltage KNX	Bus voltage, ≤10 mA
  Operating voltage	230 V AC
  Frequency	50 Hz
  Stand-by consumption	1,6 W
  Capacity loss max.	2,4 W
  Width	4 modules
  Installation type	DIN rail
  Type of connection	Terminal screws | Bus connection: KNX bus terminal
  Max. cable cross section	Solid wire: 0.5 mm² (Ø 0.8) to 4 mm² | Stranded wire with end sleeve: 0.5 mm² to 2.5 mm²
  Number of channels	2
  Type of contact	NO contact, 16 A, 10 A
  Opening width	< 3 mm
  Switching output	Potential-free
  Voltage output	230 V AC
  Frequency output	50 Hz
  Switch-on power output max.	400 A (150 µs), 200 A (600 µs)
  Resistive load	3680 W
  Incandescent/halogen lamp load	2500 W
  Capacitive load	140 µF
  Voltage input	1 – 10 V
  Signal current input max.	100 mA per channel
  Signal duration	Continuous
  Max. cable length	500 m
  Ambient temperature	-5 °C … +45 °C
  Type of protection	IP 20
  Protection class	II according to EN 60 730-1
