DK-RC-KNX-1

KNX
    Delivery time:5-7 Days
Add to cart
  • Description

Daikin VRV and Sky systems to KNX Interface

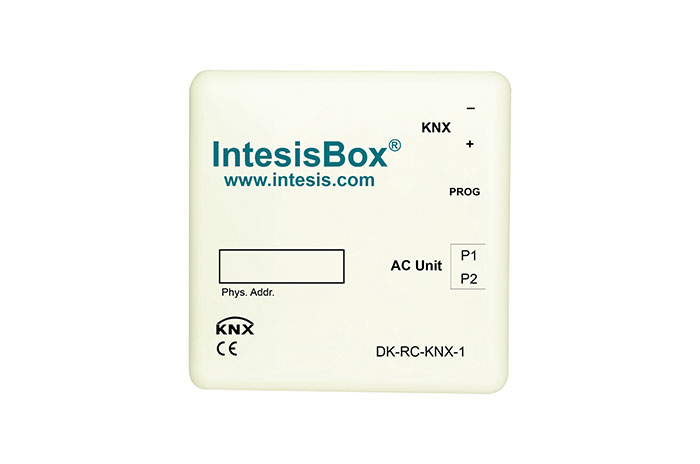

IntesisBox DK-RC-KNX-1 allows monitoring and control, fully bi-directionally, all the functioning parameters of Daikin SKY Air and VRV Air Conditioners from KNX installations.

Main features:

• Reduced dimensions, quick installation.

• Direct connection to P1/P2 bus, the bus that connects the AC indoor unit and the wired remote controller.

• Multiple objects for control and status (bit, byte, characters…) with KNX standard datapoint types.

• Status objects for every control available.

• Special Modes available (Power, Economy, Additional Heating and Additional Cooling).

• Timeout for Open Window and Occupancy. Sleep function also available.

• Control of the AC unit based in the ambient temperature read by the own AC unit, or in the ambient temperature read by any KNX thermostat.

• Total Control and Monitoring of the AC unit from KNX, including monitoring of AC unit’s state of internal variables, running hours counter (for filter maintenance control), and error indication and error code.

• AC unit can be controlled simultaneously by the remote controller of the AC unit and by KNX.

• Up to 5 scenes can be saved and executed from KNX, fixing the desired combination of Operation Mode, Set Temperature, Fan Speed, Vane Position and Remote Controller Lock in any moment by using a simple switching.
