ASR1101M/ASR1001M/ASR1101M-D/ASR1001M-D
DAHUA
    Delivery time:5-7 Days
Add to cart
  • Description

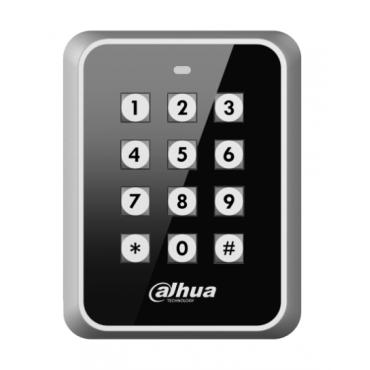

RFID Reader

>RS-485 or Wiegand protocol
>Default IC (Mifare) card (“-D” means ID EM card)
>Support card, password
>All-metal buttons with blue backlight
>Watch dog function ensure device free from halting
>Beep and indicator
>Surface mounted installation
>Tamper alarm and vandal-proof

Model ASR1101M/ ASR1101M-D ASR1001M/ASR1001M-D
System
Main Processor 8 Bit
Read
Read Format 13.56MHz(Mifare)/125KHz(“-D” EM, Optional)
Read Range 3-5cm (max.)
Response time <0.1s
Function
Tamper Alarm Yes
Interface
To Controller RS485 Wiegand
General
Keypad 12Key(0-9,*,#), number key 5 is a braille button
LCD Display Blue backlight
Beep Tone Buzzer
Ingress protection IK08, IP55
Power Supply 9-15VDC/100mA
Working Environment -30℃-+60℃
Working Humidity ≤95%
Dimension(W×D×H) 110mm*85mm*26mm
Weight 0.5Kg
