VTO1220A
DAHUA
    Delivery time:5-7 Days
Add to cart
  • Description

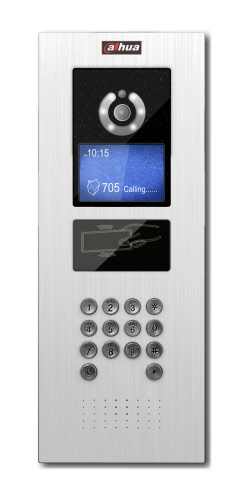

Apartment Outdoor Station

> Displayer: 3.5-inch STN screen
> Camera: 1.3 mega pixel camera
> Excellent night vision effect
> Aluminum die-casting construction plate
> Call indoor monitor and management centre
> Support contacts call function
> Support open with pass word and IC card
> Support unlock remotely
> Save visitor audio and video function
> Support extension A&C module



Mode

VTO1220A

System Main Processor Embedded micro processor
Operation
System		 Embedded LINUX OS
Video Video Compression Standard H.264
Input/Approaching Induction 1.3 megapixel CMOS camera
Black Light Support
Auto Light Compensation Support
Audio Audio Input Microphone
Audio Output Built-in speaker
Bidirectional Talk Support dual-way bidirectional talk
Display LCD Dimensions 3.5-inch STN screen
Resolution 128*64
Operation Mode Input Digital keyboard
Card Built-in IC card induction reader
Approaching Induction Body Approaching 1 meter
Alarm Vandal proof Support
Access Control No Output Support
NC Output Support
Door on/off Button Support
Door Status Detect Support
Network Ethernet 10M/100Mbps Self-adaptive
Network Protocol TCP/IP
Storage Memory 128MB
Others Power DC 10~15V
Power Consumption Standby ≤1W?work ≤10W
Working Environments -20℃－＋60℃
10%－95%RH
Dimensions 376.0mm*150.0mm*59.1mm (L*W*T);
Weight 1.6Kg;
