VTO1220BW
DAHUA
    Delivery time:5-7 Days
Add to cart
  • Description

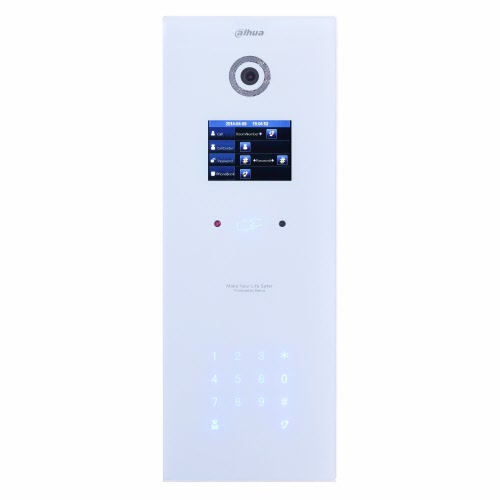

Apartment Outdoor Station

>3.5-inch TFT screen, vivid pictures are on show
>Tempered glass panel, touch buttons.
>Adopt TCP/IP network host, support SNMP network protocol.
>Network security technology, provides stable and safe operating environment.
>Support night vision, voice indication
>Support card and password to open the door
>Support visitor leaving audio and video function message
>IP65



Mode DH-VTO1220BW
System Main Processor Embedded micro processor
Operation
System		 Embedded LINUX OS
Video Video Compression Standard H.264
Input/Approaching Induction 1.3 megapixel CMOS camera
Black Light Support
Auto Light Compensation Support
Audio Audio Input Microphone
Audio Output Built-in speaker
Bidirectional Talk Support dual-way bidirectional talk
Display LCD Dimensions 3.5-inch TFT screen
Resolution 320*240
Operation Mode Input Touch keyboard
Card Built-in IC card induction reader
Approaching Induction Body Approaching IR,1 meter
Alarm Vandal proof Support
Access Control No Output Support
NC Output Support
Door on/off Button Support
Door Status Detect Support
Network Ethernet 10M/100Mbps Self-adaptive
Network Protocol TCP/IP
Storage Memory 128MB
Others Power DC 10~15V
Power Consumption Standby ≤1W，work ≤10W
Working Environments -40℃－＋60℃
10%－95%RH
Water Proof IP65
Dimensions 408.0mm*150.0mm*46.4mm（L*W*T）;
Weight 1.6Kg；
Installation Method Flush mounted
