VTH1550CH

DAHUA
    Delivery time:5-7 Days
Add to cart
  • Description

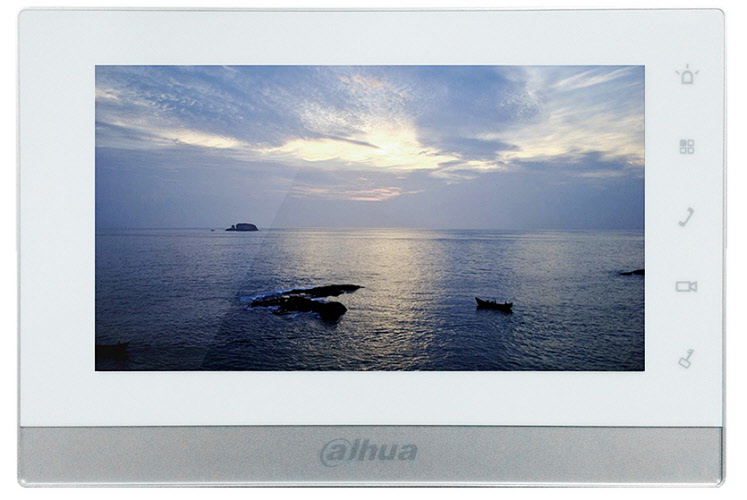

7-inch Color Indoor Monitor

>Displayer: Color 7-inch TFT LCD, Capacitive touch screen resolution 800×480
>Support 6 channels wire alarm input
>Call among households
>1 channel 10/100Mbps self-adaptive Ethernet
>Support outdoor station and IPC monitor
>Support leave audio and video message
>Support Dahua POE power supply
>Support SD card pluggable
>Surface mounted



Model DHI-VTH1550CH
System Main Processor Built-in microcontroller
Operation System Embedded LINUX operating system
Video compression H.264
Resolution 800*480
Audio Audio Input All-direction microphone
Audio Output Embedded loudspeaker
Bidirectional Talk Support bidirectional talk
Display Size Color 7-inch TFT LCD
Operating modes input Mechanical keys(emergency, protection, video talk, monitoring, unlock ), Touch screen technology
Alarm Alarm input Support 6 channels input
Alarm output Support 1 channel output
Network Ethernet 10 M / 100 Mbps adaptive
network protocol TCP/IP
General Power DC 10~15V or supply directly by Special switching power
Power Consumption Standby ≤1.5W,work≤7W
work environment Temperature: -10℃~+60℃
Humidity: 10~90%RH
Dimensions 200mm×126mm×22mm(L*W*T);
Weight 0.8Kg;
